Fragmentation analysis leads updates in PointStudio 2020

Thursday, September 24th, 2020

A powerful fragmentation analysis tool is a highlight of Maptek PointStudio 2020 geospatial modelling and reporting software, released to customers this week.

Better understanding of fragmentation can account for phenomenal downstream cost-efficiencies, with implications for many aspects of an operation, according to Group Product Manager Mine Measurement, Jason Richards.

‘Sub-optimal fragmentation is immediately associated with inefficient excavation and haulage,’ said Richards. ‘Undue damage to crusher parts is another impact. Excessive energy usage, crusher downtime due to wear and tear outside of planned maintenance and delivering out-of-specification product are directly linked to operational performance.’

PointStudio Fragmentation Analysis allows KPIs to be achieved consistently. Individual rocks can now be modelled from scanning of muck piles and draw points to provide accurate fragmentation S-curves from blasting or caving operations.

The new tool allows blast engineers and surveyors to quickly assess the condition of blasted rock, ideally before the material heads to the crushing process. Oversize rocks can be isolated for more effective haulage and processing.

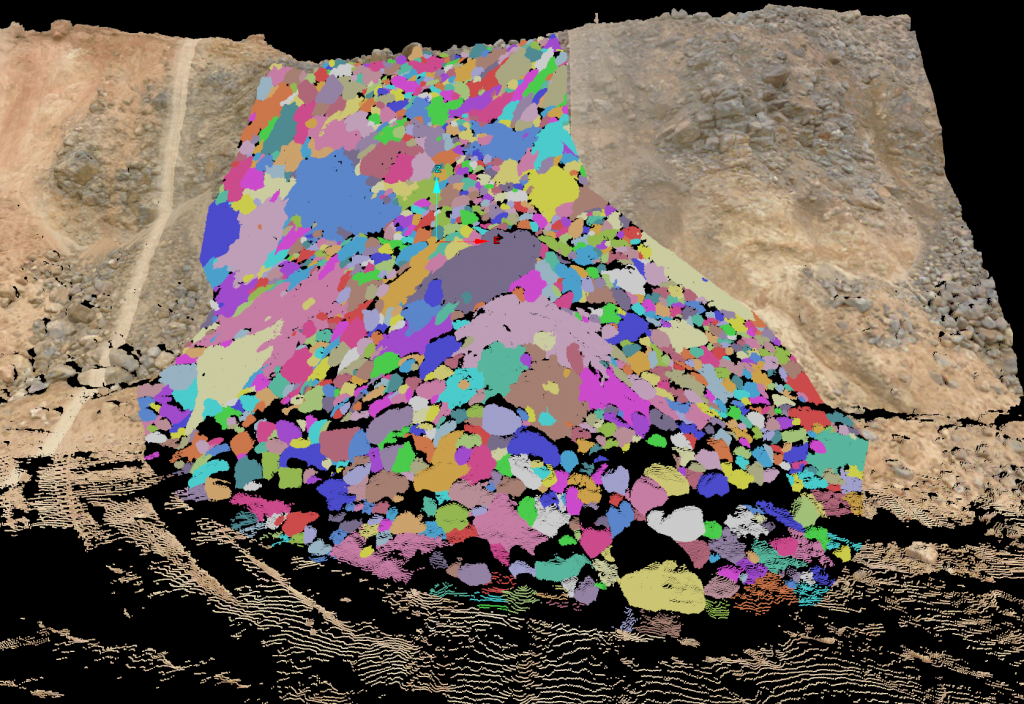

Fragmentation analysis on 3D scan data is more powerful and intuitive than image-based methods

‘A simple scan > analyse > report workflow provides a table where rocks outside of spec can be identified and dealt with before the material gets anywhere near the plant,’ added Richards. ‘A unique feature allows editing rocks or fines in the 3D view and characterising any that are not correctly defined.’

Visual and tabular reporting is understandable at a glance so rock can be fed with optimal dimensions for crushing.

Fragmentation analysis on 3D data is considerably more powerful and intuitive than methods that rely on analysing imagery. For operations with Maptek BlastLogic, the digital output can be used to compare actual to predictive fragmentation for continuous improvement of drill & blast processes.

Fragmentation Analysis is a paid add-on. Many other new and enhanced features will be delivered to existing customers for free in their PointStudio 2020 update.

One of the new options allows field surveyors using R3 laser scanners to complete scan registration immediately after scanning has finished.

‘We’ve made it possible for fully registered scans to be imported from the scanner controller tablet into PointStudio,’ said Richards. ‘Subsequent scans can then be registered with a single click as they are acquired.’

Surveyors can immediately start interrogation, analysis and modelling in PointStudio. An additional benefit derives from field access to aligned scans, allowing timely checks for survey coverage before moving to the next position.

Watch the PointStudio 2020 highlights reel

Mine operations commit significant effort to the capture and measurement of as-built data for working faces and stockpiles.

‘They can’t afford to let data inaccuracy and inefficient processing prevent them from getting full value  from their survey data,’ added Richards. ‘Bad data can lead to poor productivity and risks bad decisions based on incomplete information.’

Watch the highlights reel

Maptek remains focused on enabling easier decision making through integrated solutions that ensure the geological, spatial design, execution and measurement activities of a mining operation are linked to their business outcomes.

PointStudio 2020 and Fragmentation Analysis are available now.
