Vulcan Explorer Bundle

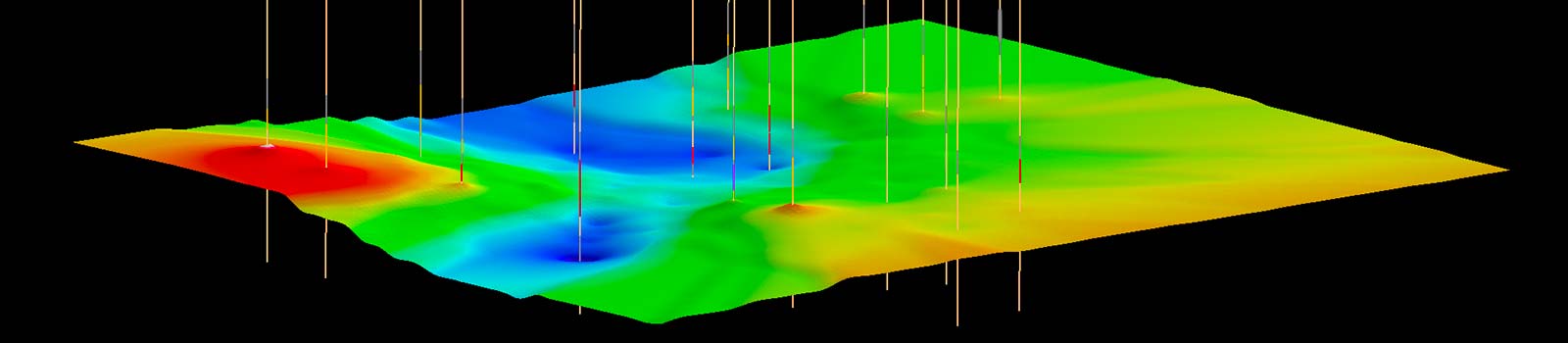

Vulcan Explorer provides an interactive 3D visualisation and modelling environment to plan drill holes, identify targets and preliminary reserves, and test and validate exploration models. Block models and 3D triangulated surfaces created with Vulcan Modeller, GeoModeller or MineModeller can be viewed.

Explorer Modules

Geology

  • Manage and validate drillhole, geophysical, lithological and analytical data in Vulcan, or interface to third party databases
  • 3D display/analysis of drillhole data
  • 3D geological interpretation
  • Compositing for non-stratigraphic and stratigraphic environments
  • Model both grade shell and geology domains
  • Ability to calculate strip ratios from user-defined stratigraphic block model (HARP) variables, limiting a lowest mineable level

Block Model Viewing

  • Visualise the block model
  • Query information in the block model
  • Compositing and grid modelling

Statistics

  • Statistical analysis of Vulcan databases, grids and block models
  • Automatically output results and charts to Microsoft® Excel™

Add These Modules

  • Block Modelling
  • Grid Modelling

Base Modules

Triangulation

  • Create/edit 3D surface and solid triangulations for exploration targets
  • Generate contours
  • Register images with triangulations for better visualisation

Vulcan 3D CAD

  • Design and digitise lines, polygons, points and text
  • View, analyse, interactively edit 3D data

Data Transfer

  • Import and export data between Vulcan and other applications
  • ODBC connection to SQL Server™, Oracle® and MS Access™

Plotting

  • Configure user-defined plot style sheets with title blocks and user prompts
  • Edit and regenerate plot files
  • Set up and generate single plots using a wizard-style interface
  • Generate multiple plots with batch-style interface using existing data specs
